Description

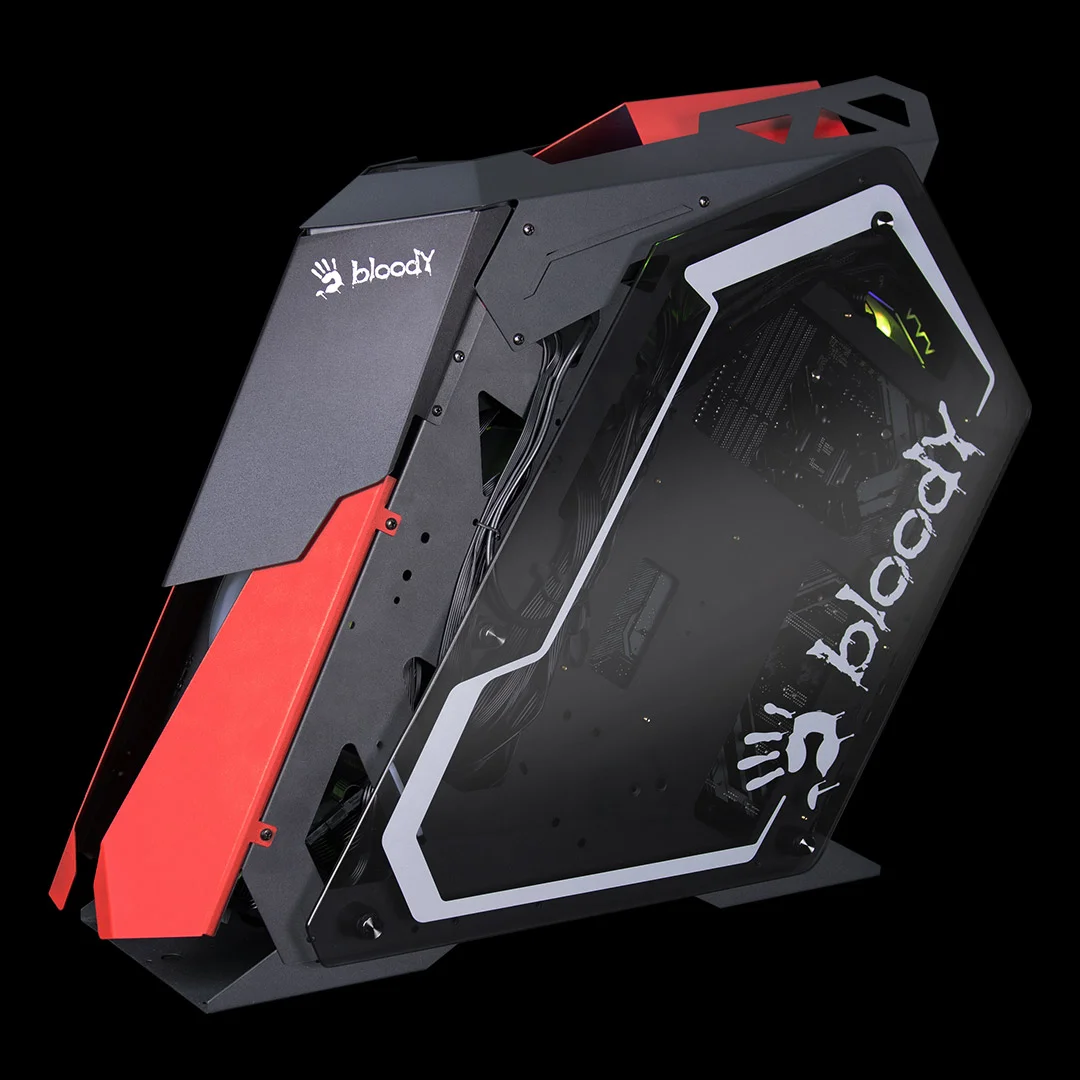

Mid-tower chassis with glass side panel
The Bloody GH-30 ROGUE routes intake from the front outward through the top and rear vents so warm air exits efficiently, and the layout accepts up to seven 120 mm fans when you want heavier airflow through demanding builds.
Fit and front panel
Standard ATX, Micro-ATX, and ITX boards mount inside, with ATX power supplies supported. Graphics cards may measure up to 310 mm long, CPU coolers up to 165 mm tall, and seven expansion slots are available. The I/O panel offers HD audio, one USB 3.0 port, and one USB 2.0 port. Storage bays include one 3.5″ HDD position and one 2.5″ SSD position.
Cooling layout
| Zone | 120 mm fans | Alternative |
|---|---|---|
| Front | 3 | — |
| Rear | 2 | — |
| Top | 2 | 240 mm liquid radiator |
Five RGB 120 mm fans arrive pre-installed: two front, two rear, and one top.
